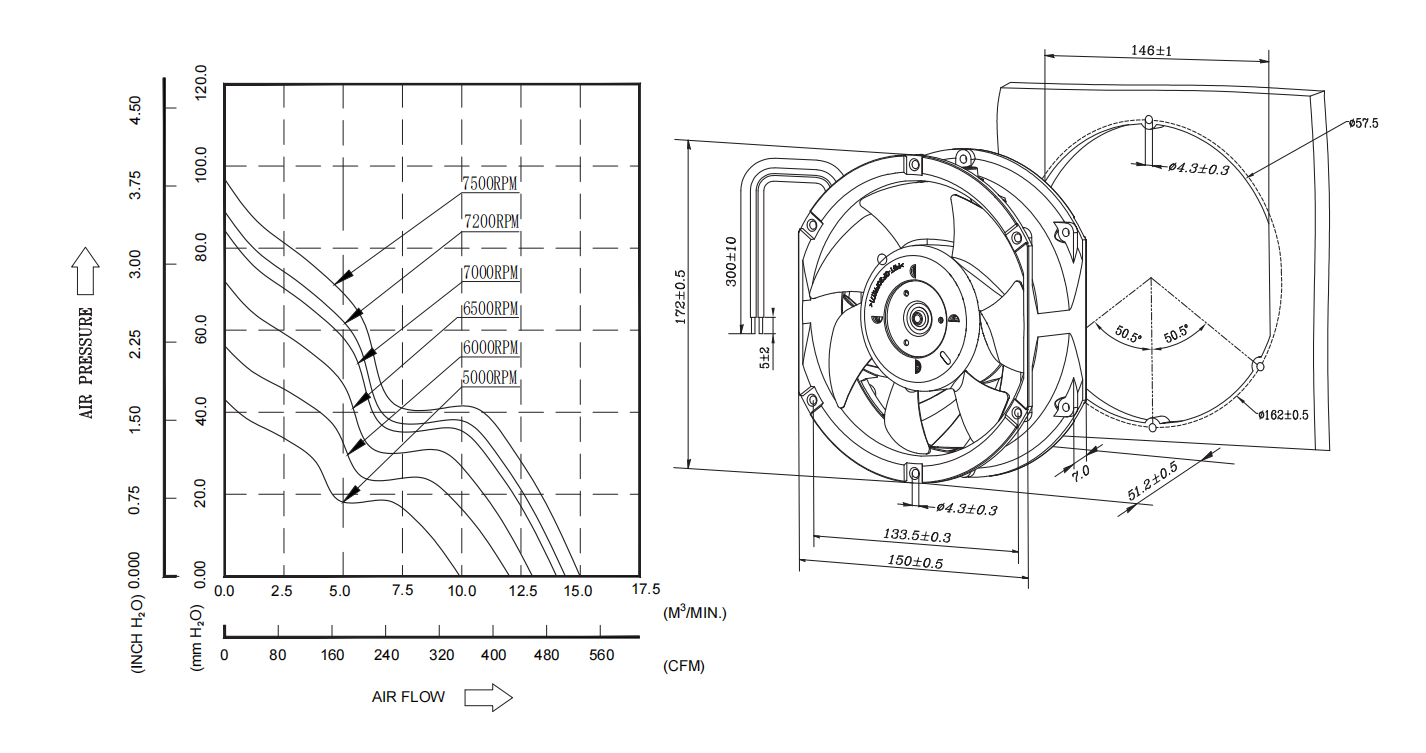

Övergripande mått: 172×150×51 mm
Material: Impeller Plast (Brandklass UL94V-0), Ram Aluminium
Ledningsledningar: UL 1007 AWG#22 eller motsvarande
Impeller: 7 blad
Rotationsriktning: Vy moturs från pumphjulssidan
Vikt: 870g
| Produktnummer | BSR | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
|---|---|---|---|---|---|---|---|---|---|---|
| SC241751-M | B | 5 000 | 24 | 2.00 | 48,0 | 355,0 | 603,23 | 43,0 | 1,69 | 68,0 |
| SC241751-H | B | 6000 | 24 | 3,50 | 84,0 | 425,0 | 722,18 | 56,0 | 2.20 | 73,0 |
| SC241751-U | B | 6500 | 24 | 4,60 | 110,4 | 459,0 | 779,95 | 72,0 | 2,83 | 74,0 |
| SC241751-S | B | 7000 | 24 | 5,80 | 139,2 | 496,0 | 842,82 | 84,4 | 3,32 | 76,0 |
| SC481751-M | B | 5 000 | 48 | 1.00 | 48,0 | 355,0 | 603,23 | 43,0 | 1,69 | 68,0 |
| SC481751-H | B | 6000 | 48 | 1,80 | 86,4 | 425,0 | 722,18 | 56,0 | 2.20 | 73,0 |
| SC481751-U | B | 6500 | 48 | 2.30 | 110,4 | 459,0 | 779,95 | 72,0 | 2,83 | 74,0 |
| SC481751-S | B | 7000 | 48 | 2,90 | 139,2 | 496,0 | 842,82 | 84,4 | 3,32 | 76,0 |
| SC481751-F | B | 7200 | 48 | 3.00 | 144,0 | 508,0 | 863,21 | 89,0 | 3,50 | 77,0 |
| SC481751-G | B | 7500 | 48 | 3,40 | 163,2 | 530,0 | 900,59 | 96,9 | 3,81 | 78,0 |
